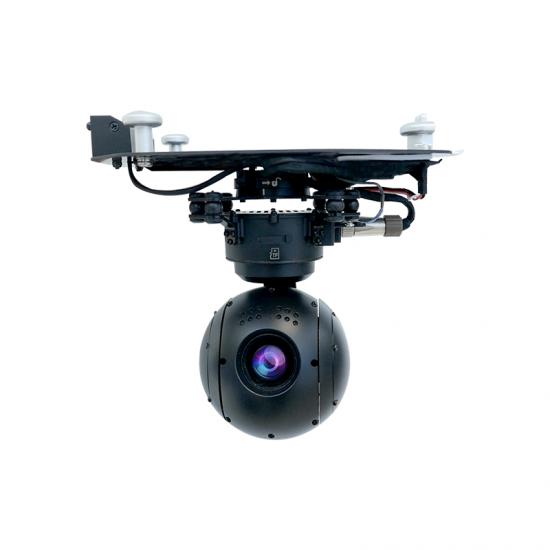

LT Digital Infrared Thermal Imager Payload for Drone
LT Digital thermal imager creates images based on the heat that always radiates from any object, vehicle or person. It can detect the infrared radiation characteristic of the object’s band signal, the signal can be converted into visible images and graphics then further calculated by the temperature value to realize a real-time tracking and monitoring
Parameters
|
Resolution |
640*512 |
|
Band |
8um - 14um |
|
Focal Length |
VGA,HDMI |
|
Frequency |
≥25Hz |
|
View Angle |
≥28.7°*23.0°(±5%) |
|
Zoom way |
self-motion |
|
|
|
|
NETD |
≤5mk |
|
Thermometry Range |
-20°-- 150° |
|
Pseudo color |
Eight |
|
Electric Zooming |
8X |
|
Power |
Stable Power ≤15W,Peak Power ≤30W |
|
Working Temperature |
-20℃ -- +50℃ |
|
Storage Temperature |
-20℃ -- +55℃ |
|
Power Supply |
24V |
|
DRI |
D≥400m R≥100m I≥50m |
|
IP rate |
IP54 |
|
|
|
|
Weight (Kg) |
1.1kg |
|
Heading Angle |
-180°-- +180° |
|
Tilt Angle |
-120°-- +90° |
|
Rolling Angle |
-35°-- +35° |
Features
- 8 thermal backgrounds for clear images to identify the targets
- Good sensitivity to the targets in light conditions, such as shadows, backlight, darkness and even camouflaged objects, allows operator to detect and act on suspicious activity
- Auto zoom for quick-target- capturing
- Camera locally video recording for original video feeds
- 360 degree rotation for full range of detection
- High-quality of thermal images to provide evidence and mission guidance
Applications
Fire accidents, chemical factory exploration, police suspect chasing, anti-poaching, pipeline Inspection,power line inspection, telecom towers inspection, forest fire prevention, search and rescue etc.
